Planet Technology 15 Slot Media Converter Chassis, AC Power
R 10,635.00
R 12,438.00
PRIZE DRAW
Zoom
Description
Description:

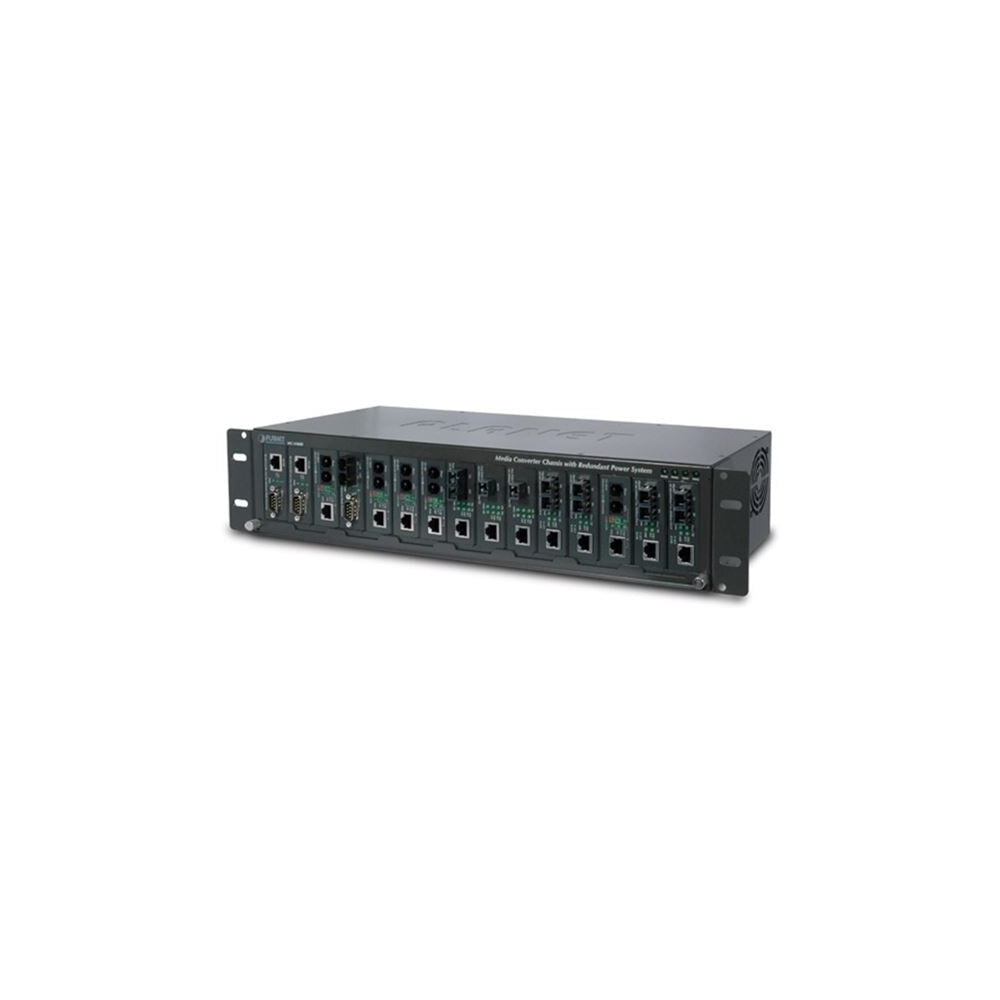

Planet Technology's MC-1500R media converter chassis provides 15 slots for a wide range of Planet's media converter series. It allows the connectivity of up to 15 Planet Ethernet, Fast Ethernet, Gigabit Ethernet or VDSL2 converters all in one chassis.

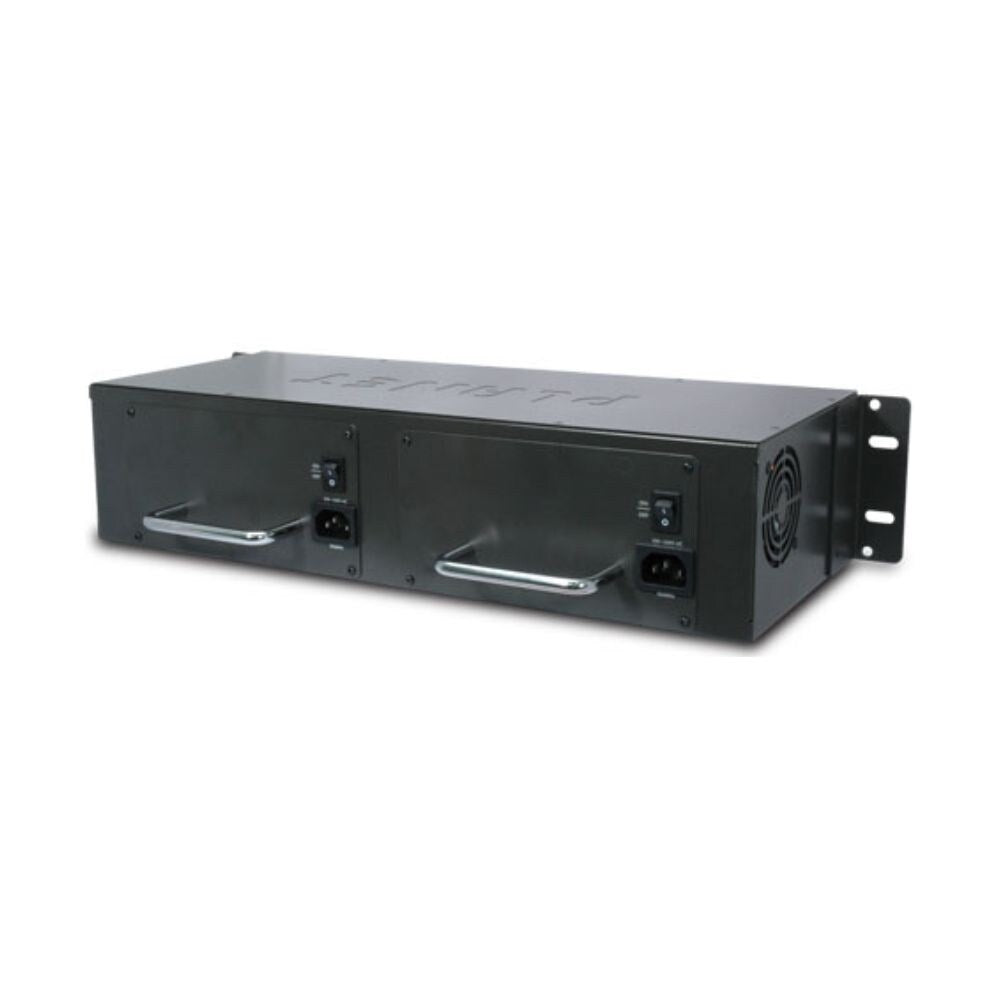

This converter chassis supports the optional hot swappable Redundant Power System (RPS) to ensure continuous operation. It is equipped with one 100 to 240V AC power supply unit and one 48V DC power supply unit which, come in the package. To enhance the reliability, one spare power supply slot is supplied for that optional purpose. The continuous power systems are specifically designed to meet the demands for high tech facilities requiring the highest power integrity available.
The MC-1500R offers flexibility in installation and cost effective scalable solution. With an independent power supply on each slot of the MC-1500R, any converter is hot swappable without causing an interruption to other converters. The media converters and power modules can be plugged in and played anytime.
Each bay of the media converter chassis can be populated with any of Planet Technology's media converter series, the FT, GT, VC-20x and ICS, to provide media conversion between fibre optic, phone wire and serial to copper lines.
It provides two fans built in for hardware cooling and reduces the effort of converter maintenance and management, diagnose the status all at one time.
Bay power isolation to ensure each bay is electrically isolated from each other and power protection from over voltage, over current and short circuit.
Features:
Compatibility
- Supports Planet Technology's Fast Ethernet and Gigabit Ethernet Media Converter series FT-80x / FT-90x and GT-70x / GT-80x
- Supports VDSL2 media converter VC-201A / VC-231
- Supports serial over Ethernet converter ICS-10x series
Hardware
- High quality 19" rack mountable chassis installation 2.4RU
- Supplies the converters modules to be plugged and played
- Supports up to fifteen hot swappable media converters
- Two fans built in for hardware cooling
- Reduces the effort of converter maintenance and management, diagnose the status all at one time
Power System
- Bay power isolation to ensure each bay is electrically isolated from each other
- Power protection from over voltage, over current and short circuit
Specifications:
| Compatible With | Supports Planet Techology's Fast Ethernet and Gigabit Ethernet media converter series FT-80x or FT-90x and GT-70x or GT-80x Supports VDSL2 Media converter VC-201A or VC-231 Supports serial over Ethernet converter ICS-10x series |
| Style | 15 slot media converter chassis |
| Power Requirements | 100 to 240V AC 50 to 60Hz 3.3A |
| Power Output | Each slot: 5V DC1A |
| Power Consumption | System Only: 10W / 34.1 BTU Full Loading: 80W / 272 BTU |
| LED | Power 1 Power 2 Fan 1 Fan 2 |
| Fan | 2 x fan |
| Temperature | Operating: 0°C / 32°F to 50°C / 122°F Storage: -20°C / -4°F to 70°C / 158°F Relative Humidity: 5% to 90% |
| Rack Size | 2.4RU high |
| Dimensions | Height: 103mm / 4.1" Width: 438mm / 17.24" Depth: 200mm / 7.87" Slot Dimensions: Height: 71mm / 2.8" Width: 27mm / 1.06" Depth: 96mm / 3.78" |
| Weight | 4.3kg / 9.48lb |
| Certifications | FCC Class A, CE mark |
User guides
Download User Guides:
Data Sheet
User Manual
