Description
Description:

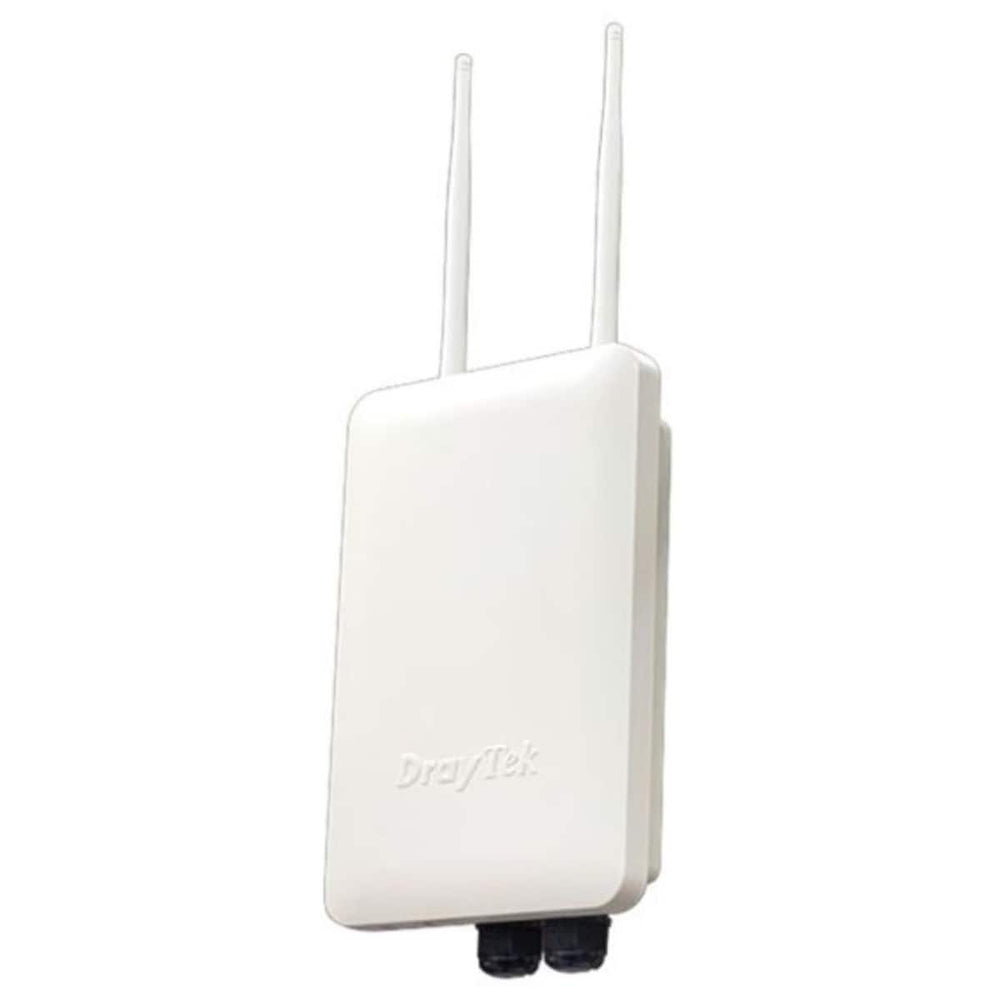

Fully IP67 compliant, the product can work in extremes of heat, cold, dirty and wet environments. It is dust and water resistant and housed in a robust metal case to withstand harsh environments.
Features:
- Ruggedised Outdoor AP Suitable for installation in any outdoor environment with water an dust resistant IP67 rated casing
- Dual Band 11ac Wave 2 Access Point Up to 866Mbps + 400Mbps total wireless bandwidth. Connect 128 clients per wireless band, 256 in total
- Temperature Sensor Integrated temperature and humidity sensing ensures you're aware of water ingress or heat problems
- Mesh Wireless Link up to 8 DrayTek VigorAP access points over wireless with Mesh. Mesh auto configures wireless links
- Wireless Security & VLANs Secure your wireless networks with 802.1x and Access Control
- AP and Repeater Modes Use the VigorAP 918R as an Access Point or extend an existing wireless network

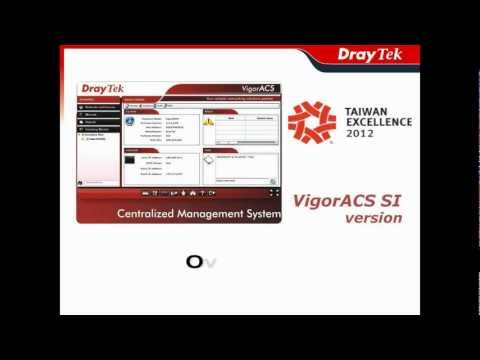

- Central Management with VigorACS Manage VigorAPs from the cloud with DrayTek VigorACS
- Gigabit PoE LAN PortsPower the VigorAP 918R with PoE. Connect a second device with the VigorAP 918RPD
- Directional High Gain AntennaConnect two locations wirelessly with the VigorAP 918RPD's directional antenna
- Wireless Optimisation Band Steering, Airtime Fairness and AP-Assisted Mobility improve wireless network efficiency
- Multi-SSID over MeshProvide separate wireless networks for 4 separate LANs over Mesh
- Mesh Auto OptimisationDrayTek Mesh is Self-organising & Self-Healing to ensure reliable wireless connectivity
- Easy to Configure and ManageSetup of the VigorAP 918R is easy with the DrayTek Wireless app
- Central Management with a DrayTek Router Manage, monitor and provision VigorAPs connected to a DrayTek Vigor router
Specifications:
| Physical Interfaces / Controls | 1 x Gigabit Ethernet LAN Port, RJ-45 (PoE-PD input) 1 x Gigabit Ethernet LAN Port, RJ-45 (PoE-PSE output, RPD model) Factory Reset Button (covered) Antenna Connectors: 2x RP-SMA Type Built In Temperature and Humidity Sensor |
| Operating Modes | Access Point Range Extender Mesh Root Mesh Node |
| Wireless Performance | AC1300 Class Wireless Access Point 5GHz: PHY Rate 866Mb/s 2.4GHz: PHY Rate 400Mb/s |
| Wireless LAN | IEEE 802.11ac (Wave 1 & 2)/a/b/g/n Frequency Band 2.4 GHz & 5.8Ghz - Simultaneous Operation Up to 128 clients per radio - 256 total clients Mesh can use 2.4GHz or 5GHz radios for operation |
| Omni-Directional Wireless Antenna | 2 x Antennae (supplied) RP-SMA fitting Omni-directional Removable Weatherproof TX/RX Dual-Band |
| Directional High Gain Wireless Antenna | Internal (Weatherproof) 5GHz TX/RX 11 dBi Gain at 5GHz Uni-Directional MIMO (2x2) antenna design 30 ° Horizontal Beam width 7.5 ° Vertical Beam width |
| Wireless Encryption | WPA2-Personal (WPA2/PSK) WPA2-802.1x WPA3-Personal WPA3-802.1x Mixed (WPA2+WPA3)/PSK also supports WPA/WEP (Not recommended) |
| TWireless Management Features | 802.1q VLAN Up to four distinct SSIDs (for VLANs) for each frequency band (2.4/5Ghz) Multi-SSID over Mesh - Separate internal and Guest networks over Mesh Wireless Client Status List in WUI Client Limit per radio Client Limit per SSID |
| Wireless Performance Optimisation | Airtime Fairness Band Steering Client Steering - 802.11v AP-Assisted Client Mobility Fast Roaming - 802.11r WMM (Wireless MultiMedia) Bandwidth Management (Per Station / Per SSID) |
| Maximum Power Consumption | VigorAP 918R: up to 18 Watts VigorAP 918RPD without PoE-PSE Passthrough: up to 18 Watts VigorAP 918RPD with PoE-PSE Passthrough: 43.2 Watts |
| PoE-PSE - Passthrough Power Output at 100m | 802.3at power source: up to 12 Watts output VigorPoE-600 PoE Injector power source: up to 18 Watts output |
| Environmental And Dimensions | Operating Temperature: -40°C to 70°C Operating Humidity: 5% to 95% (Non-condensing) Dimensions: Height without Antenna and Port Covers: 244mm Height with Antenna and Port Covers: 460mm Width: 161mm Depth: 72mm Weight: 1kg Pole or wall mountable |
