Description
Description:

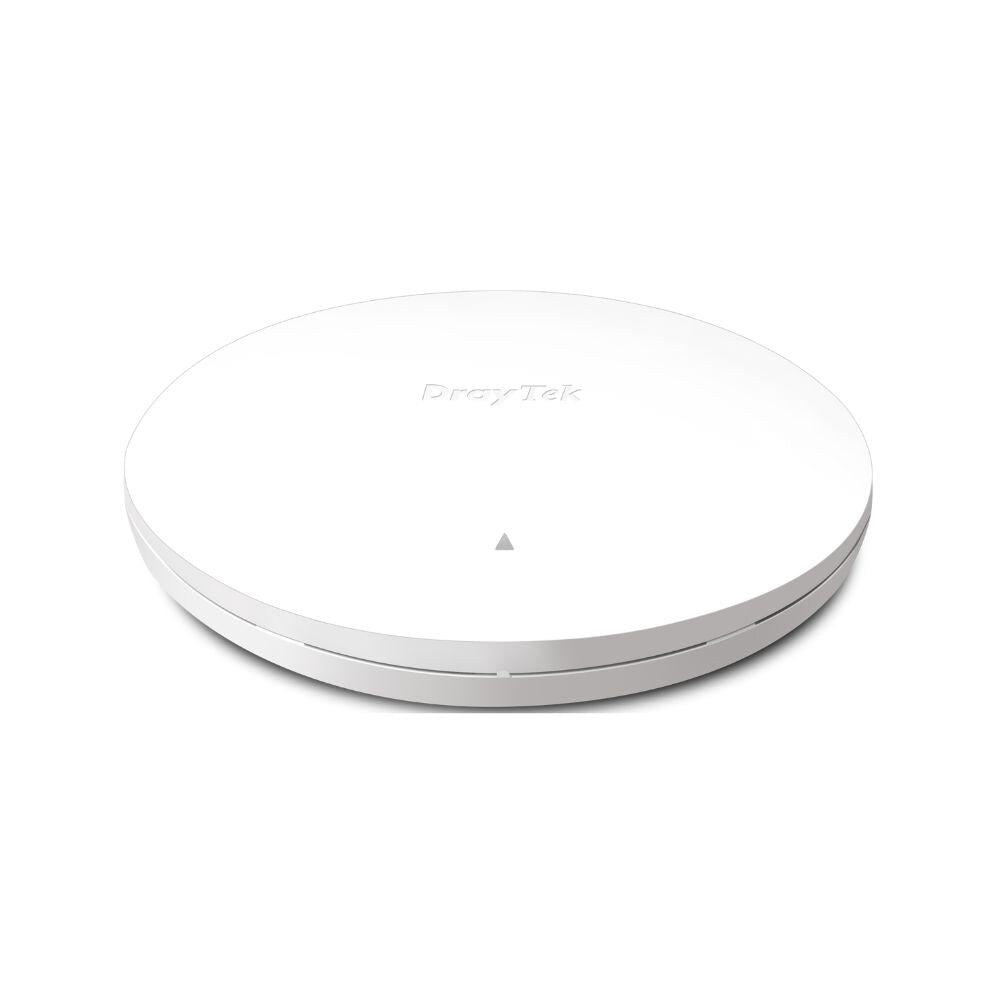

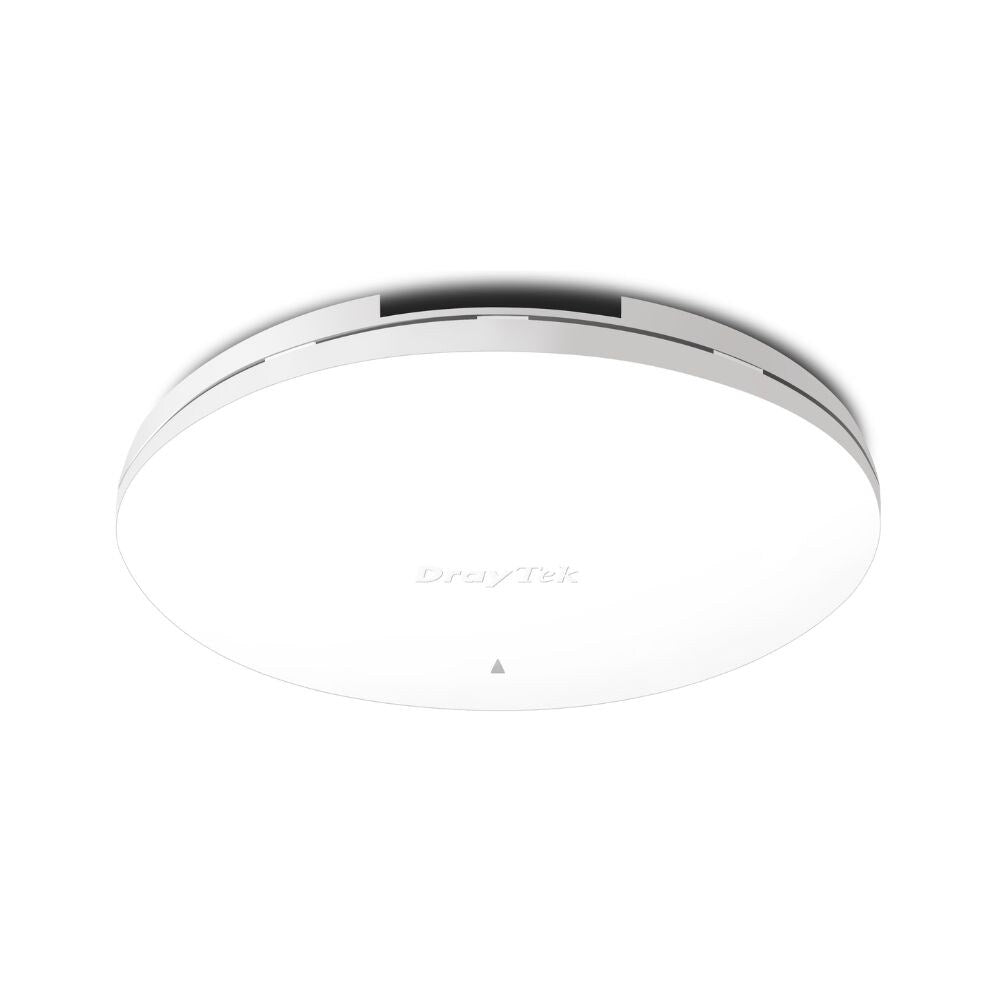

The VigorAP 962C from DrayTek is a high performance wireless access point designed for business and SOHO environments. This ceiling or wall mounted mesh access point delivers dual band wireless performance of up to 3Gbps (AX 3000), providing fast and reliable Wi-Fi connectivity for your network.
Equipped with 2.5Gb Ethernet wired connectivity, this access point ensures seamless integration with your existing network infrastructure, allowing for high speed data transfer and optimal performance for all your connected devices.
It is ideal for small to medium sized businesses and home offices, whilst being easy to install and manage. It is a cost effective solution for improving your wireless network.
With its advanced features and high speed performance, this access point provides a secure and reliable Wi-Fi connection for all your business needs.
Features:
- Powerful Wi-Fi6 access point
- Offers AX3000 class wireless technology
- Mesh wireless auto configures link to up to 8 DrayTek VigorAPs
- Master access point management, effortlessly manage up to eight compatible mesh VigorAPs and 20 access points through the Wireless Virtual Controller module
- High density performance linking up to 256 clients
- AX3000 11ax dual band wireless
- Strong WPA3 connection encryption
- With access point assisted roaming stay connected to the access point closest to you
- 2.5Gb Power over Ethernet (PoE)
- Easy to manage and configure with DrayTek Wireless app
- Ceiling or wall mounted
Specifications:
| Physical Interfaces | 1 x 2.5 Gigabit Ethernet LAN Port (2.5G/1G/100M/10M), RJ45 accepts PoE+ power Recessed factory reset button DC power socket |
| Wireless Performance | AX3000 class wireless access point Max 256 concurrent clients Max wireless networks (SSIDs) 16 total, 8 per band 5GHz: Up to 2402Mb/s PHY rate 2.4GHz: Up to 574Mb/s PHY rate |
| Wireless LAN Compatibility | 2.4GHz Standards: IEEE 802.11ax / b / g / n, 2x2 MIMO, up to 1024 QAM 5GHz Standards: IEEE 802.11ax / ac Wave 2 / a / n, 2x2 MIMO, up to 1024 QAM |
| Wireless LAN Features | Wi-Fi 6 Dual Band 802.11ax - 2.4 GHz and 5Ghz Backwards compatible with 802.11ac, 802.11b, 802.11g, 802.11n 2.4GHz channel bandwidth 20 / 40 MHz 5GHz channel bandwidth 20 / 40 / 80 / 160 MHz 2.4GHz channels 1 to 13 5GHz channels extended 5Ghz band channels 36 to 48, 52 to 64,100 to 140 DFS/TPC support for 5GHz channels 52 to 140 Higher efficiency OFDMA BSS Colouring improves interference handling TX Beamforming 1024 QAM Multi user MIMO |
| Wireless Performance Optimisation | Airtime Fairness Band steering WMM Wireless Multi Media Fast roaming 802.11r |
| Mesh Features | Up to 8 APs per Mesh Group Up to 3 Mesh Hops per chain with optional Wired Uplinks Config Sync Self healing Mesh Syslog |
| Power Requirements | Maximum Power Consumption: 12 Watts DC 12V 1.5A via external 100-240v AC/DC PSU. Not supplied 802.3at PoE+ via LAN port. Requires PoE+ injector or a PoE+ switch such as the VigorSwitch P2100 |
| Environmental | Operating Temperature: 0° C / 32° F to 40 °C / 104° F Operating Humidity: 10% to 90% non condensing |
| Mounting | Ceiling or wall mounted, requires rear cable entry |
| Dimensions | Height: 30mm / 1.18" Width: 190mm / 7.48" Depth: 190mm / / 7.48" |
| Weight | 0.52kg / 1.15lb |
| Certifications | ROHS, UKCA and CE compliant |
| Included | Ceiling mount bracket and fittings kit |
User guides
Download User Guides:
Data Sheet
DrayTek Data Book
Quick Start Guide
Security Best Practice White Paper
