Description
Description:

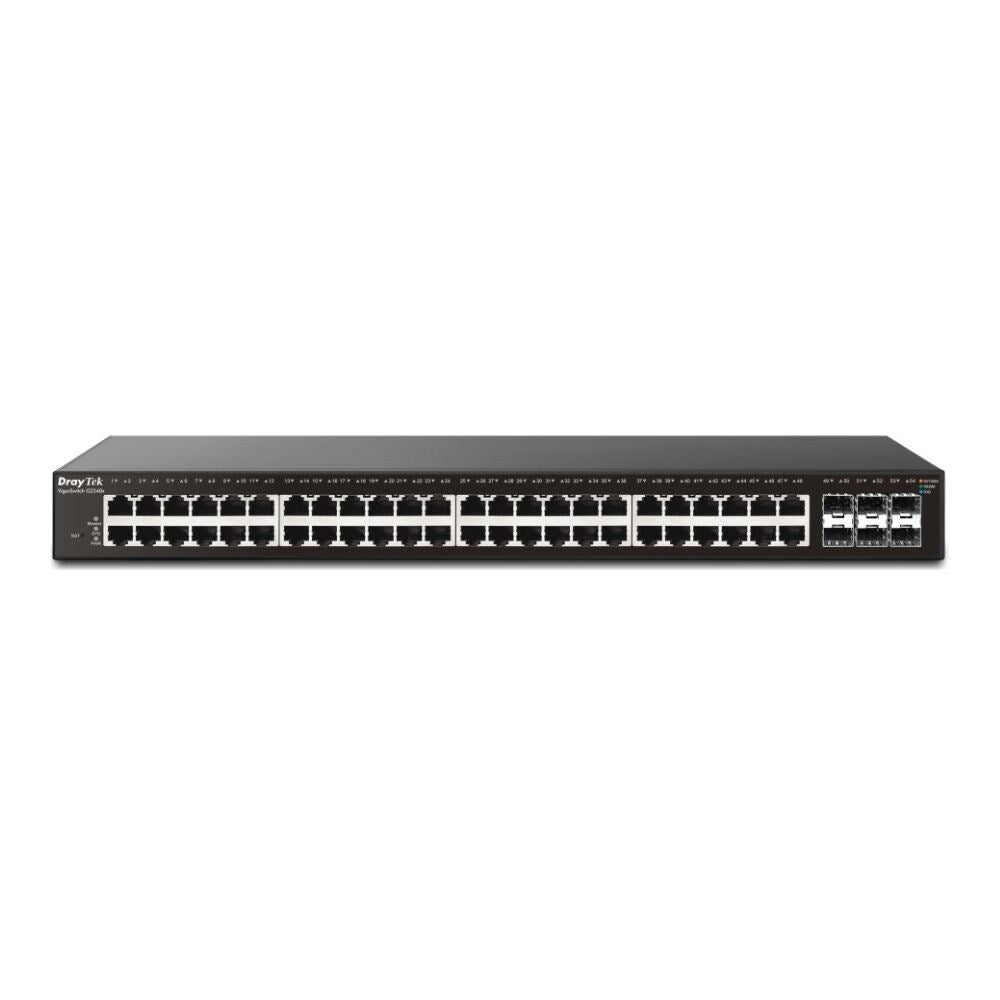

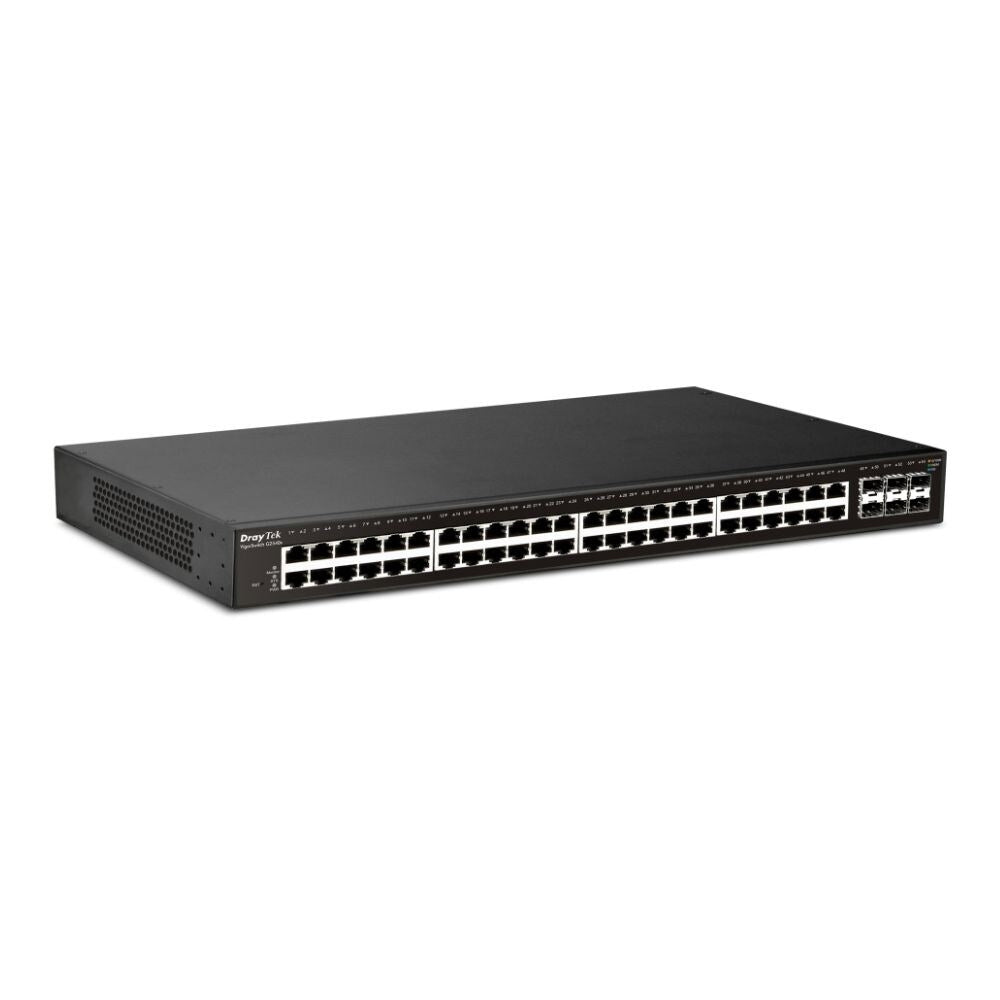

The VigorSwitch G2540XS 10 Gigabit Fully Managed Switch from DrayTek has 6 10Gb SFP+ ports and 48Gb ports.
This managed switch will prove to be high speed and the 6 SFP+ ports allow your network to use 10Gbps ports to link switches, servers and networked storage with more bandwith. This helps to reduce the risk of bottlenecks ocuring in the network.
It hosts a plethora of management options and enterprise level features to improve network stability and security for businesses. Designed for centralised management, the VigorSwitch G2540xs can be provisioned and monitored through both the VigorACS management platform and/or, a DrayTek Vigor router's Central Switch Management. Easily provision the VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network, with VLANs spanning multiple switches.
The G2540XS can be configured and can moitor the switch through the VigorACS cloud management platform, i.e. DrayTek's Central Switch Management for Vigor routers or directly by the devices; Web Interface.
The VigorSwitch features advanced Layer 2+ routing, allowing expansion of the network with support for Layer 3 benefits such as Static Routes and VLAN routing to connect separate networks. It provides a fast and secure bridge between networks.
It delivers great security features and allows the network to be protected against unauthorised access and network problems with 802.1X port authentication, DHCP snooping, IP Source Guard and Access Control lists. It also monitors and controls the switch's temperature and operating voltage. Email notification alerts integrated for power loss, downtime or configuration chnages.
This switch easily manages connected IP cameras with detection and management of ONVIF cameras. Use aut generated IP camera topography and camera snapshots to detect and troubleshoot problems.
Features:
- 48 x RJ-45 Gigabit Ethernet ports
- 6 x SFP+ 10GbE ports for uplink or fibre
- High speed 10 Gigabit SFP+ uplinks to easily increase network throughput and meet demanding bandwith requirements
- 802.1q VLANs with Dynamic MAC based, voice and surveillance VLAN
- Managed centrally or stand alone to save time and money
- Advanced Layer 2+ routing features provide a fast and secure bridge between networks
- Hardware monitoring prevents network failure, ensuting high availability with smart fan control
- Greater security features provide secure and control access to the network
- IP camera management with ONVIF IP camera compatible, is easily configurable and allows easy deployment and mangement of connected IP cameras
Specifications:

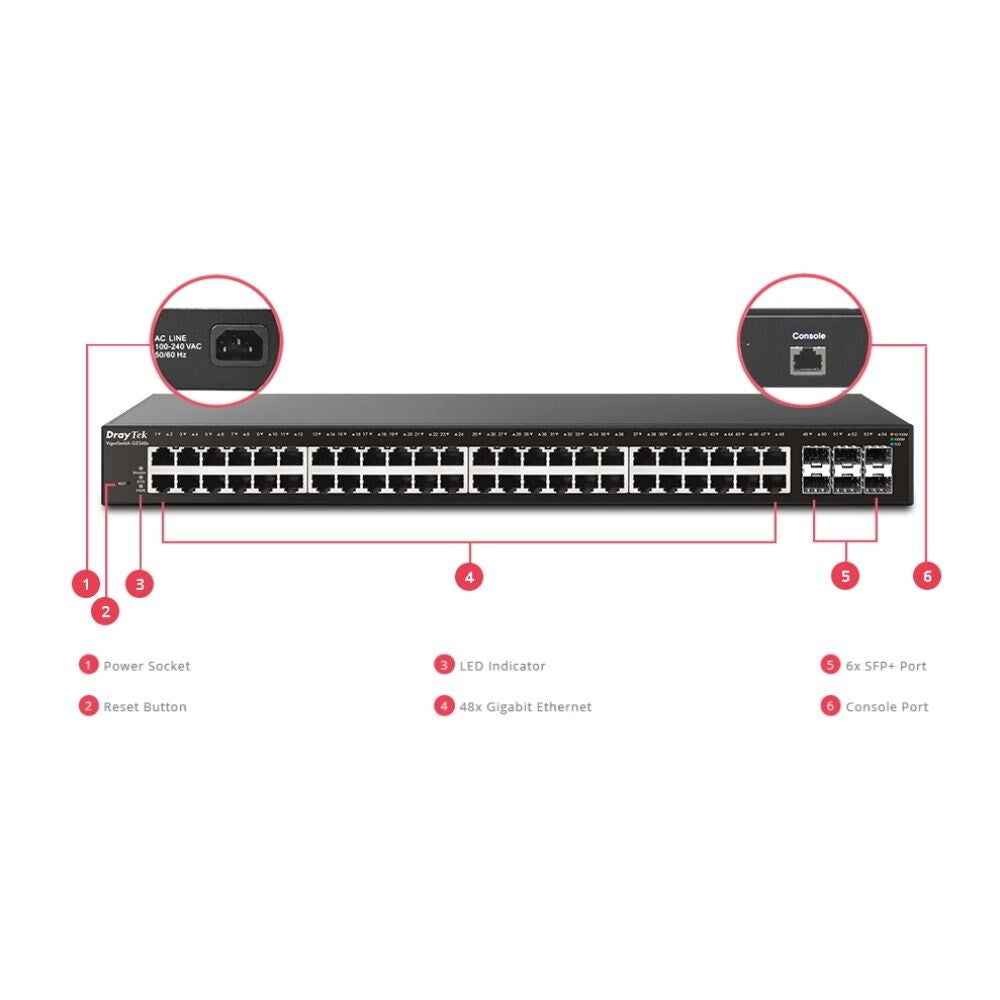

| Physical Interfaces | 48 RJ-45 Ethernet Ports: 10/100/1000Mbps 6 SFP+ Ports: 1000Mbps/10Gbps Console Port: RJ-45 physical, RS-232 electrical |
| PoE Specification | 48 ports 802.3af and 802.3at, high power PoE PSE 400W total power budget for PoE Up to 30Ws per port Auto detection of Powered Device (PD) and consumption levels Per port PoE status LED Indicators Alert LED for high PoE usage Port Power Consumption Monitoring via Web Interface and CLI Circuit Protection to prevent power interference between ports PoE PD monitoring and maintenance features, per port, including scheduling, PoE PD priority, restart PoE PD if not responding to ping and restart PoE IP camera if not providing camera output |
| VLANs | 802.1q Tag based VLAN Port based and MAC based VLANs QinQ (Basic) GVRP: General VLAN Registration Protocol Up to 256 VLANs. Out of 4096 VLAN IDs 802.1v Protocol based VLAN Voice VLAN. OUI mode Surveillance VLAN. OUI mode Protocol VLAN MAC based VLAN Management VLAN Port isolation |
| QoS | Support 8 priority queues Port based rate control, ingress and egress Priority queue schedule, WRR or Strict Priority Rate limit Class of Service including 802.1p CoS, DSCP, CoS-DSCP and IP Precedence ToS |
| Network Security | IP Source Guard with ARP inspection Storm Control: Broadcast, Unknown Multicast, Unknown and Unicast DoS Attack protection AAA authentication MAC authentication Protected port or port isolation Static Port Security Dynamic ARP inspection DHCP Snooping with option 82 Loop Detection and Prevention Access Control Lists (ACL) including Up to 512 ACL entries, source and destination MAC, VLAN ID, IPv4 or v6 address, Protocol and TCP/UDP port |
| Networking Performance | Switching Capacity: 216Gbps Forwarding Rate: 160.7Mpps at 64 bytes MAC Addresses Supported: 32,000 Jumbo Frames: Up to 12KB Packet Buffer Size: 16Mbit Layer 3 Routing Table: Up to 2000 entries |
| Multicast | Up to 256 multicast groups Multicast Group Filtering or Throttling IGMP Snooping V2/V3 (BISS) IGMP V2/V3 Querier Multicast VLAN registration MLD Snooping V1/V2 including Immediate Leave. Report Suppression and IGMP/MLD Querier |
| ONVIF Surveillance Management | Discovery of ONVIF compliant IP cameras Surveillance topology Real time video streaming ONVIF Device Maintenance including device information, Network settings configuration, time settings, reboot, reset to Factory Default settings and ping check with Mail Alert on disconnection |
| Power | Requirement: 100 to 240VAC Supply: Internal Max Consumption: 52W BTU/Hr: 174.61 |
| Operating Temperature | 0°C / 32°F to 50°C / 122°F Relative Humidity: 10% to 90% non condensing |
| Rack Size | 1U |
| Dimensions | Height: 45mm / 1.77" Width: 441mm / 17.36" Depth: 270mm / 10.63" |
| Weight | Excluding SFP Modules and Cables: 4kg / 8.82lb |
| Certifications | RoHS and CE compliant General IEEE Standards Compliance: 802.3 10Base-T 802.3u 100Base-T 802.3ab 1000Base-T 802.3ae 10GBase-T 802.3x Flow Control Capabilit 802.3 Auto negotiation 802.3ad Port trunk with LACP 802.3az Energy Efficient Ethernet 802.3af PoE 802.3at PoE+ 802.1q VLAN 802.1p Class of Service 802.1d Spanning Tree 802.1w Rapid Spanning Tree 802.1s Multiple Spanning Tree 802.1x Port Based Network Access Control 802.1ab Link Layer Discovery Protocol (LLDP) 802.1ad QinQ |
| Included | UK IEC13 power cable Rack mount fittings RJ-45 to RS-232 console cable adaptor Console cable RJ-45 |
